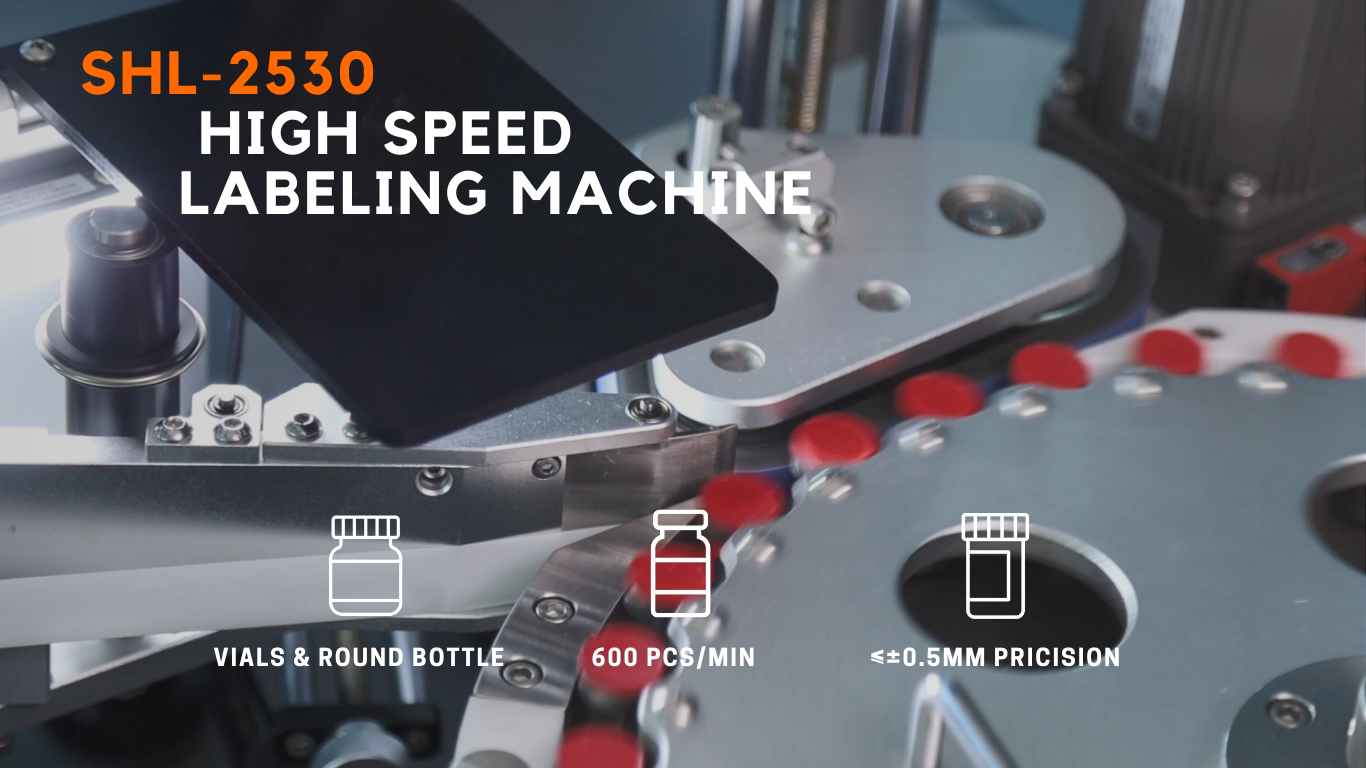

SHL-2530

High Speed Rotary Vial Labeling Machine

Applications

Vertical

Labeling Machine

500

Round Bootles

Vials

Rotary

Performance Features

  • Applicable to all types of Vials and Ampoules, etc.

  • High-Precision rotary labeling system with labeling tolerance≤±0.5mm

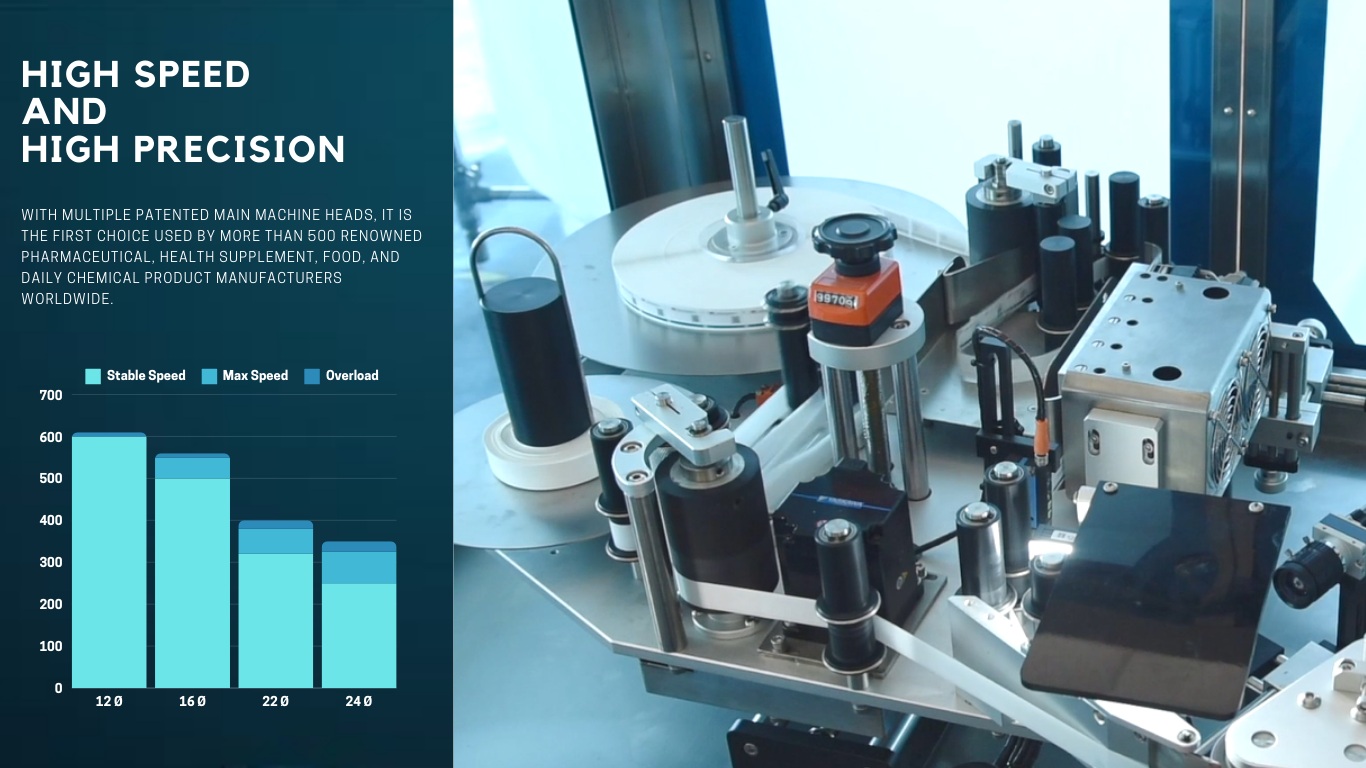

  • Stable speed: 500 bottles/min

  • Unique 2-section label feeding mechanism, to ensure synchronous tension, precise position, no deviation for batch printing

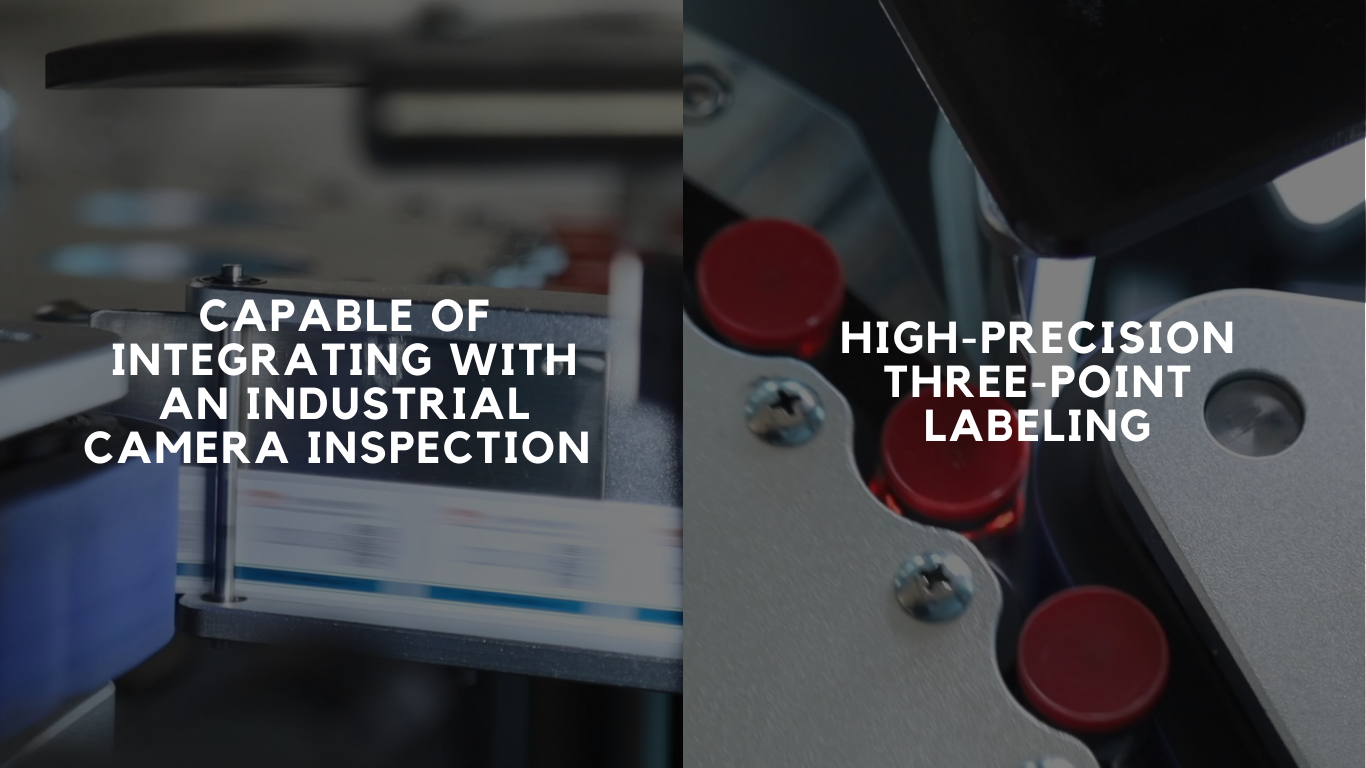

  • Imported CCD camera and German SICK inspection system, allowing stable accurate and high-speed operation

  • Vacuum system with rejecting function for defective products

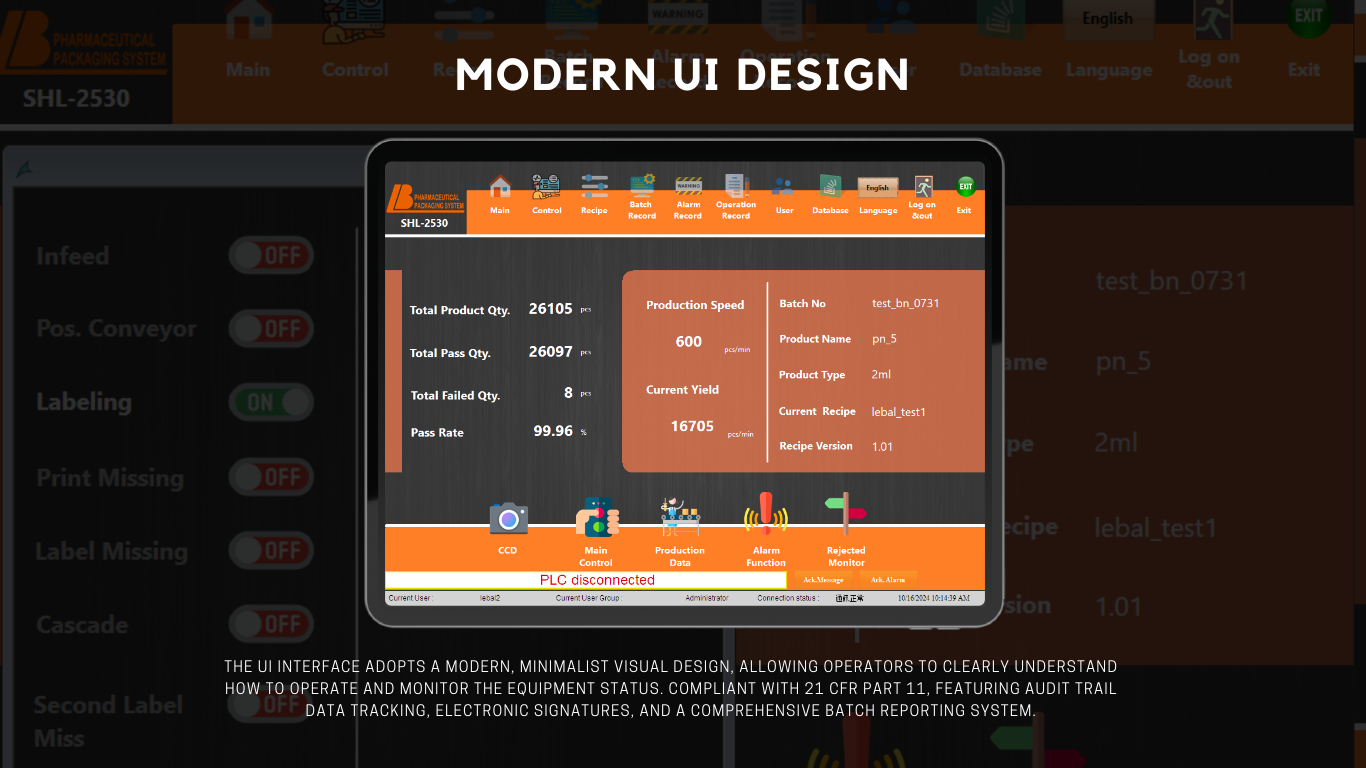

  • Comply with 21 CFR Part 11

A:15-80mm
B:15-126mm

Technical specification

Size
3300(L) x 1450(w) x 1828(H) mm
Weight
N.Wt:400kg G.Wt550kg
Speed
500 pcs /min
Precision
≤±0.5mm
Ink jet
Optional
Visual inspection
Optional

*As technical data for these machines may be advantaged in future.
