SHL-2550

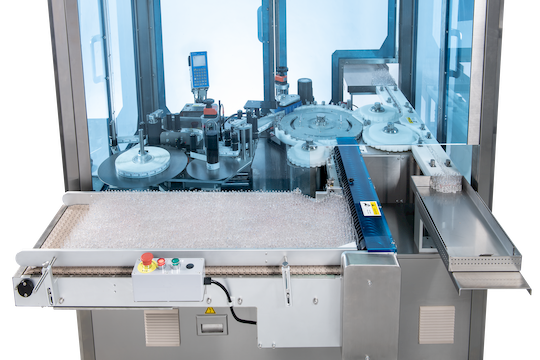

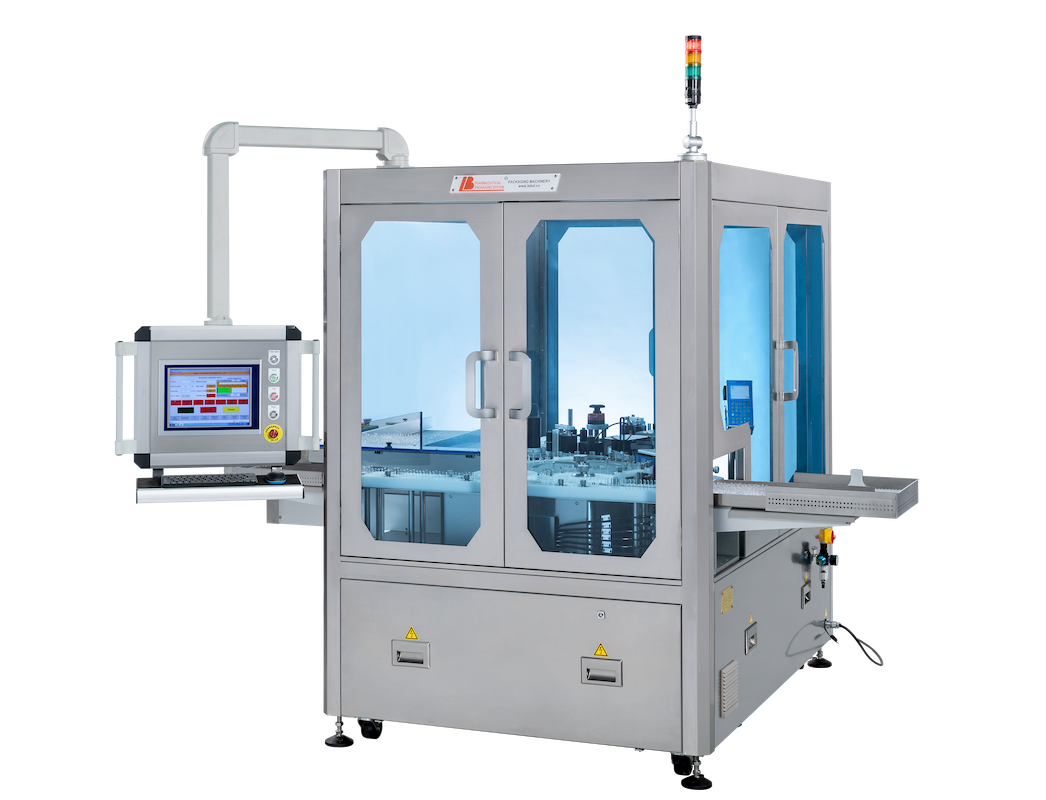

High-Speed Rotary Labeling Machine For Ampoules/ Oral Liquid Bottles

Applications

Vertical

Labeling Machine

400

Ampoules

Oral Liquid Bottles

Performance Features

  • Applicable to various types of ampoules and oral liquid bottles, etc.

  • High-Precision rotary labeling system with labeling tolerance≤±0.5mm

  • Stable speed:400 bottles/min

  • Unique 2-section label feeding mechanism, to ensure synchronous tension, precise position, no deviation for batch printing

  • Imported CCD camera and German SICK inspection system, allowing stable accurate and high-speed operation

  • Vacuum system with rejecting function for defective products with an accuracy of 100%

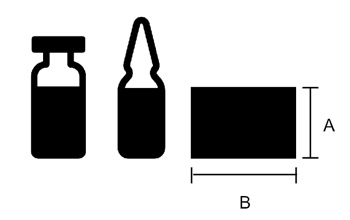

A:15-80mm
B:20-800mm

Technical specification

Size
2400(L) x 1600(w) x 1560(H) mm
Weight
N.Wt:380kg G.Wt600kg
Speed
400 pcs/min
Precision
≤±0.5mm
Ink Jet
Optional
Visual inspection
Optional

*As technical data for these machines may be advantaged in future.
